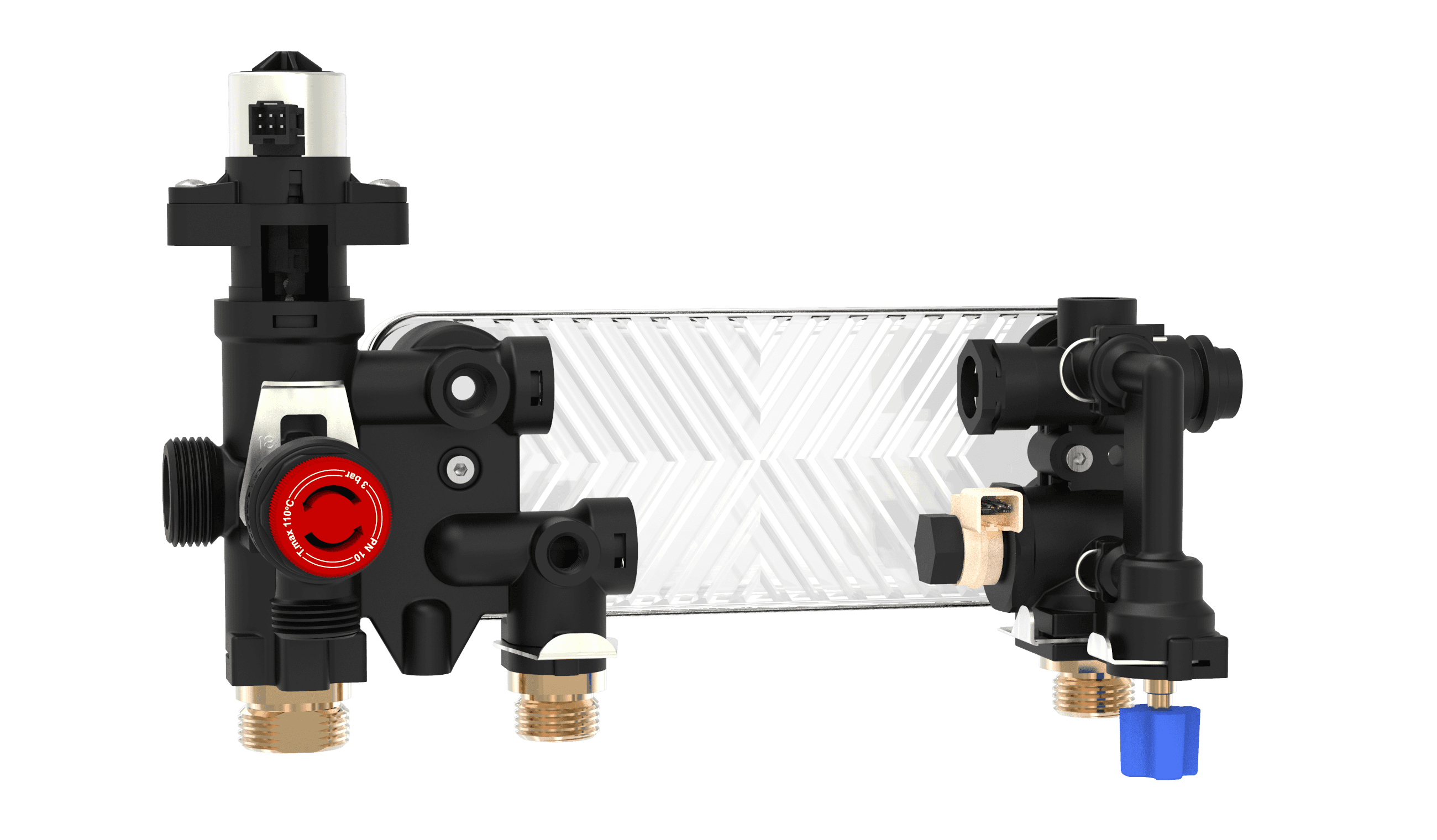

ARC21
ARC21
ARC21
Hydraulic Groups
Horizontal Hydraulic Groups for Wall Hung Boilers
Horizontal Hydraulic Groups for Wall Hung Boilers
Pressure CH
Pressure CH
0 bar to 3 bar
0 bar to 3 bar
Pressure DHW
Pressure DHW
0,2 Bar to 10 Bar
0,2 Bar to 10 Bar
Flow Rate DHW
Flow Rate DHW
2-20 l/min
2-20 l/min
Pressure Relief Valve
Pressure Relief Valve
Composite 3 Bar
Composite 3 Bar
Flow Restrictor
Flow Restrictor
10 l/min
10 l/min
/
/
*6 to 20 l/min
*6 to 20 l/min
*6 to 20 l/min
Filling System
Filling System
Manuel Tap 37mm
Manuel Tap 37mm
Automatic Bypass
Automatic Bypass
Through PHE (380±30 mBar)
Through PHE (380±30 mBar)
Flow Detection
Flow Detection
Hall Effect Sensor
Hall Effect Sensor
Electric Connections
Electric Connections
Rast 2,5
Rast 2,5
Three Way Valve
Three Way Valve
Stepper Motor
Stepper Motor
NTC Port
NTC Port
G1/8"
G1/8"
Manometer Port
Manometer Port
Quick Connection
Quick Connection
Pressure Measurement Port
Pressure Measurement Port
G1/4"
G1/4"
Material
Material
Composite-PA66 GF30
Composite-PA66 GF30
* Optional
