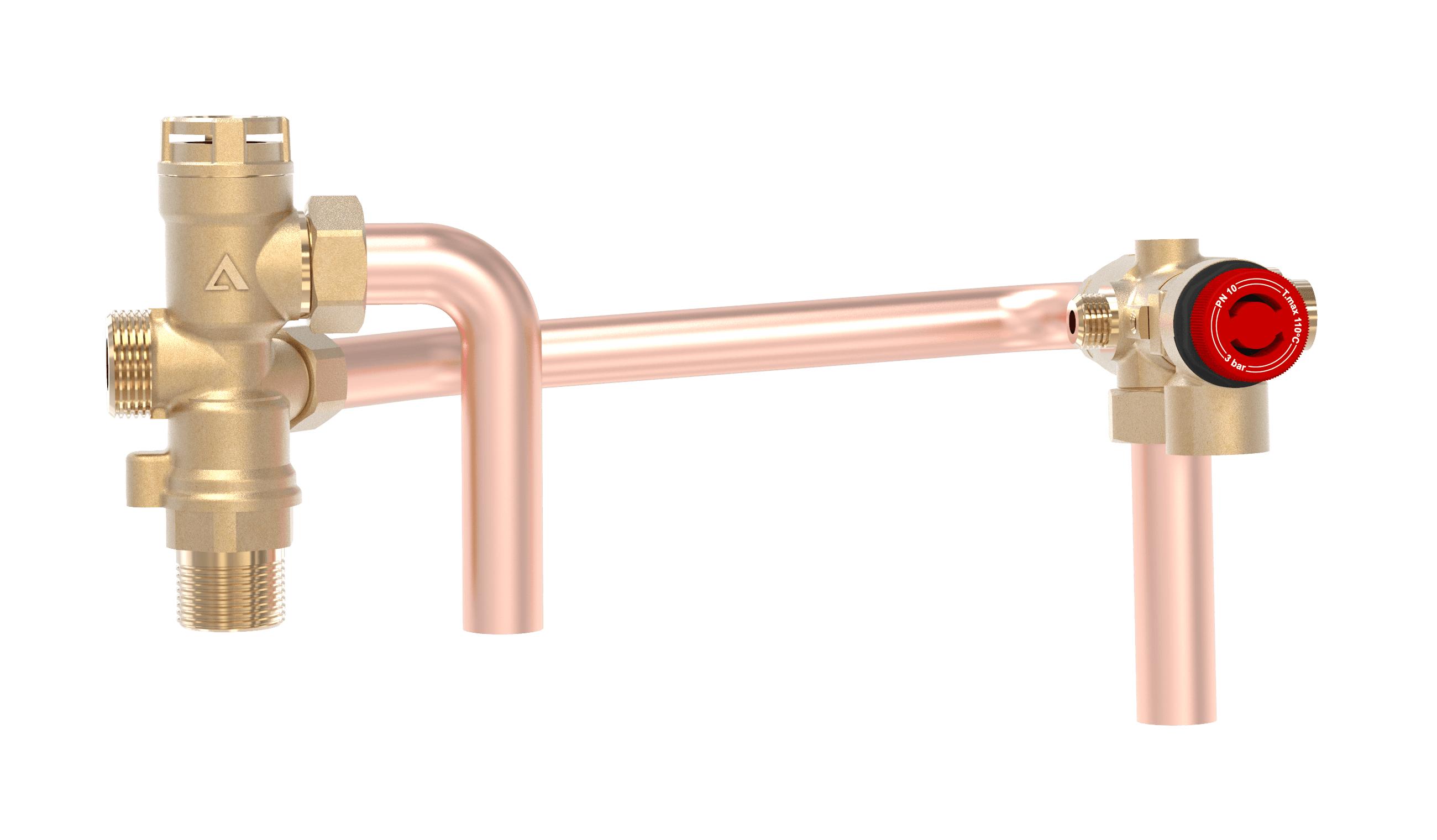

ARC40
ARC40
ARC40
Hydraulic Groups
Heating only Hydraulic Groups for Tank Boilers
Heating only Hydraulic Groups for Tank Boilers
Pressure CH
Pressure CH
3 bar to 3 bar
3 bar to 3 bar
Pressure DHW
Pressure DHW
0,2 bar to 6 bar
0,2 bar to 6 bar
Pressure Relief Valve
Pressure Relief Valve
Brass 3 Bar
Brass 3 Bar
/
/
*Composite 3 Bar
*Composite 3 Bar
*Composite 3 Bar
Three Way Valve
Three Way Valve
ON-OFF Motor
ON-OFF Motor
External Bypass
External Bypass
300 mBar
300 mBar
/
/
*400 mBar
*400 mBar
*400 mBar
Manometer Port
Manometer Port
M14x1
M14x1
Pressure Measurement Port
Pressure Measurement Port
G1/4"
G1/4"
Material
Material
Brass - CuZn40Pb2(CW617N)
Brass - CuZn40Pb2(CW617N)
* Optional
